| Dimensions: | 21"W x 54"L x 34"H |
| Strap Sizes: | Steel, 3/8" x .015 inch to 2" x .050 |
| Rate: | 100 Feet per Minute |
| Strap Length: | 1 inch to 100 feet (Selectable in English or Metric Units) |
| Strap Quantity: | 1 to 9,999 pieces per setting |
| Accuracy: | Plus/Minus 1/4" |
| Electrical: | 110V, 60 HZ, 1Ph (other voltages available; consult factory) |
| Pneumatic: | 80 psi |
| Shipping Weight: | 500 lbs |
Standard CTL Dispenser

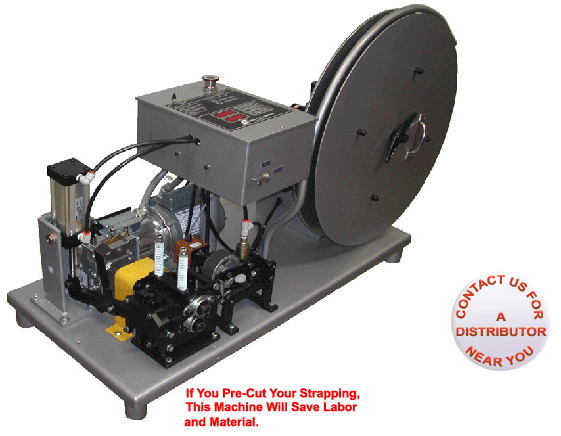

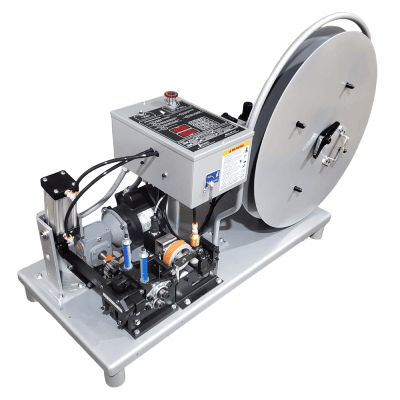

Model 440 Cut-To-Length Strap Dispenser
MODEL “440” Cut-to-Length Strap Dispenser
Designed and recommended for packaging departments and insulation contractors that require high volumes of pre-cut strapping and banding material. Reduces labor costs and eliminates strap waste. Simply enter the length of the cut and the quantity of straps into the keypad. The dispenser does the rest. Industry proven on jobs requiring 30,000 cuts per day. Solid state controls and working parts designed for years of rough use provide this machine with an exceptional service life.

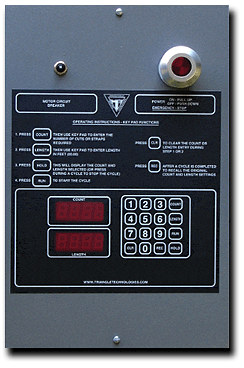

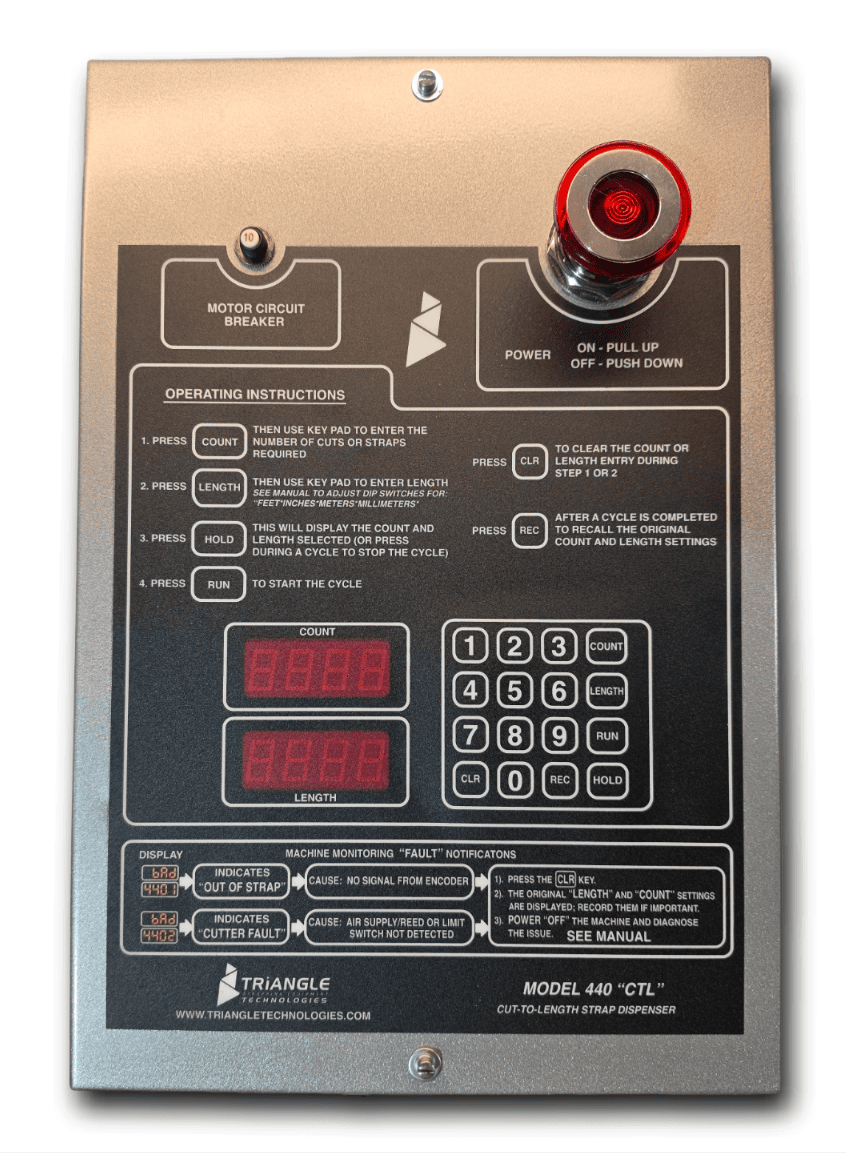

Solid State Controls
Solid state controls with continuous LED readouts for the strap length and strap count, a cycle hold feature to check strap length, and a reset feature that recalls the original strap count without resetting the display, all provide for ease and flexibility of operation. The membrane type touch pad seals out dust and dirt, extending service life, while providing positive data entry.
The Model 440 Cut-to-length Strap Dispenser is truly simple and easy to operate. No confusing MMI (Man-Machine Interface). With the 440, no training is required. Simply enter the count and the length, and the machine does the rest.
Data and Dimensional Information
Options and Optional Equipment

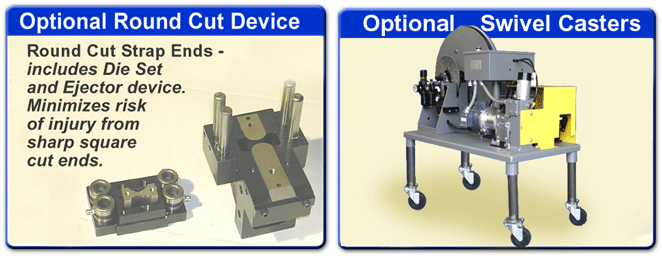

- Round Cut Strap Ends (includes Die Set and Ejector device) Minimizes risk of injury from sharp square cut ends
- Plastic Strapping (includes grip type Feed Wheel, precision strap Guides and reel extension)
- 16″ Legs with Swivel/Locking Casters
- Pneumatic Tires and Lift Handles (makes transporting the 440 to and from and around the job site or your plant very easy)
